Fine Pitch XC Series
- Pixel pitch: P0.62 P0.78 P0.93 P1.25 P1.56 P1.87
- Cabinet size: 600*337.5*39.5mm 600*675*39.5mm
- Mini COB flip chip, high refresh rate 7680Hz, high brightness 1000nit. Power, control and card are three-in-one, meet the needs of high-end film and television and XR virtual shooting.
Three-in-one Design
Power supply, system and HUB three-in-one design.

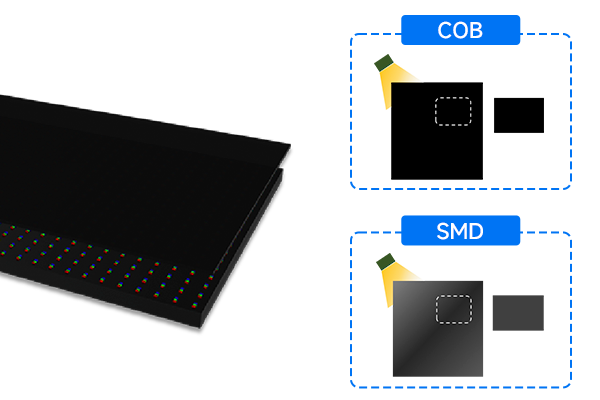

No Color Difference
Contrast ratio reaches 10000:1, encapsulated by nano-optical composite materials.
HDR High Dynamic Picture
3.8K resolution, 22bit+0.001nit fine control, 419,000 fine grayscale calibration, brilliant colors, restore the real picture.

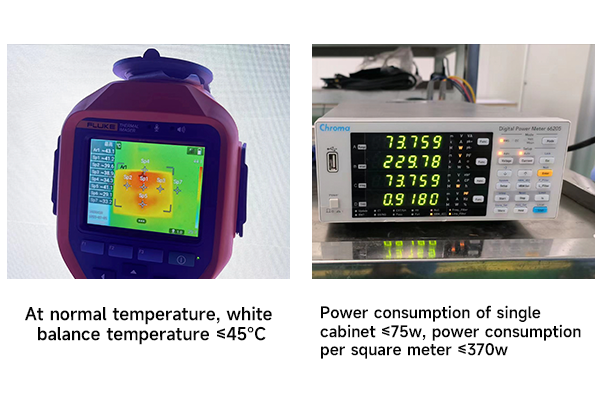

Low Power Consumption
Energy-saving common cathode circuit, low temperature rise, low power consumption.

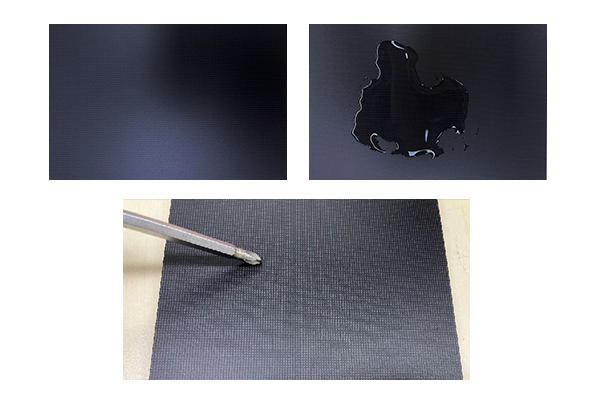

Moisture-proof, Anti-fingerprint, Anti-bump
Protection level IP54, panel hardness 4H. New optical material on the surface, anti-scratch, anti-fingerprint, anti-bump.
Applications
Widely used in auditoriums, conference rooms, banquets, lobby, exhibition demonstrations, transportation, studios, command monitoring and other fields.
Flagship store
Meeting room
Monitoring command center
Lobby
Technical Parameters
Contact us for detailed parameters.
| Model | XC0.62 | XC0.78 | XC0.93 | XC1.25 | XC1.56 | XC1.87 |
| Pixel Pitch | 0.62mm | 0.78mm | 0.93mm | 1.25mm | 1.56mm | 1.875mm |
| Module Size | 150*168.75mm | |||||
| Module Resolution (dot) | 240*270 | 192*216 | 160*180 | 120*135 | 96*108 | 80*90 |
| Cabinet Size | 600*337.5*39.5mm | 600*337.5*39.5mm / 600*675*39.5mm | ||||
| Cabinet Resolution (dot) | 960*540 | 768*432 | 640*360 | 480*270 | 384*216 | 320*180 |
| Maintenance Method | Front maintenance | |||||
