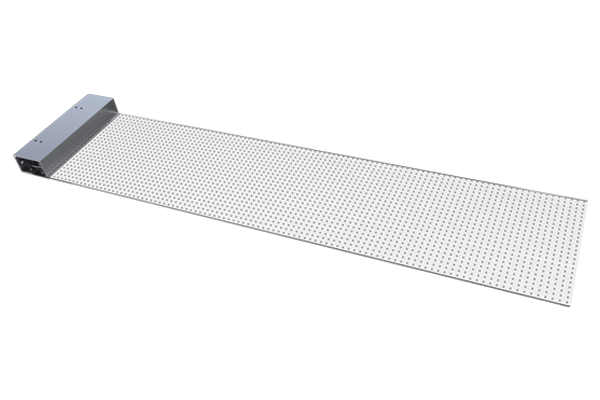

Transparent Flex LED Screen SA Series
- Pixel pitch: P4-4 P5-5 P4-8 P6 P8 P10 P16 P20 P30 P40
- Module size: 1000mm*240mm
- No steel structure required, just gently stick the screen, scrape the back of the screen with a scraper, and then connect the power signal.

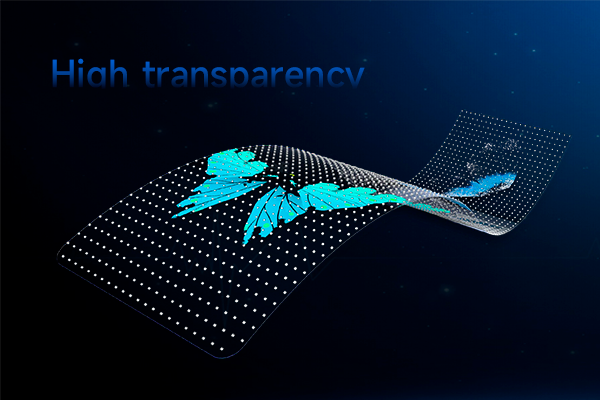

High transparency
The Transparent Flex LED Screen has high transparency. The substrate is high-temperature-resistant PET. When the screen stops working, it is completely integrated into the glass.

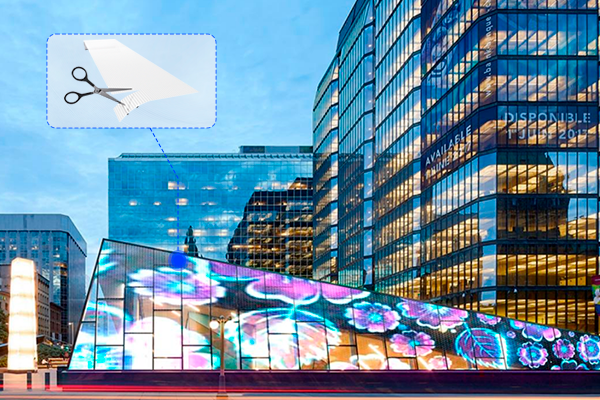

Can be cut at will
Transparent Flex LED Screen is highly flexible, bendable, and can be cut at will. It is not restricted by size or shape, and can meet different size requirements to achieve more creative displays.
Ultra-light and ultra-thin
Lightweight design, thickness is only 3mm, weight is as light as 3.5kg/㎡.

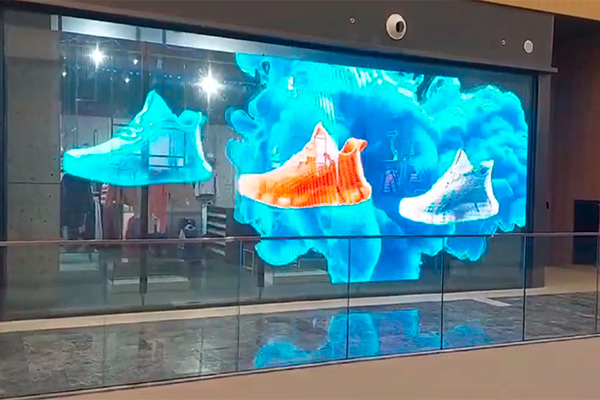

Hidden installation
The screen has no components, the power supply is hidden, and it can be installed quickly and easily, and can be directly pasted on the glass surface.

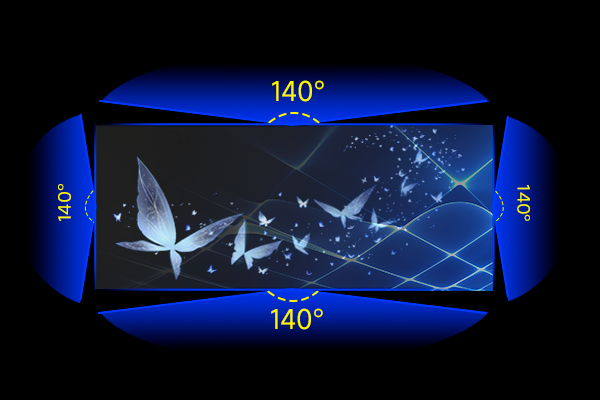

Wide viewing range
The viewing angle is wide, 140° in all angles, with no blind spots or color cast, and every aspect is wonderful.
Applications
Applied to urban CBD, large shopping malls, large scenic spots, pedestrian bridges, transportation hubs, glass windows, stage performances, commercial exhibitions, etc.
Flagship store
Meeting room
Monitoring command center
Lobby
Technical Parameters
Contact us for detailed parameters.
| Model | SA4-4 | SA5-5 | SA4-8 | SA6 | SA8 | SA10 | SA16 | SA20 | SA30 | SA40 |
| Pixel Pitch（x*y） | 4mm*4mm | 5mm*5mm | 4mm*8mm | 6mm*6mm | 8mm*8mm | 10mm*10mm | 16mm*16mm | 20mm*20mm | 30mm*30mm | 40mm*40mm |
| Module Size | 1000mm*240mm | |||||||||
| Module Resolution (dot) | 250*60 | 200*48 | 250*30 | 166*40 | 125*30 | 100*24 | 64*15 | 50*12 | 34*8 | 25*6 |
