Fine Pitch XS Series
- Pixel pitch: P1.267 P1.461 P1.58 P1.9
- Cabinet size: 608mm*342mm
- HUB wireless connection, ultra-light and ultra-thin, quick and easy installation. Low brightness and high gray, fine image quality.

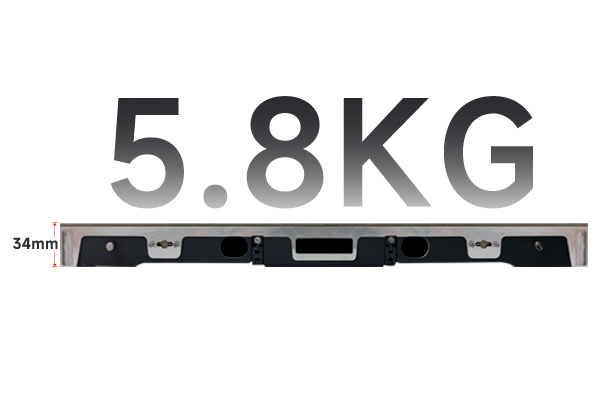

Ultra-thin and Light
The cabinet weight is only 5.8kg, and the thickness is only 34mm.

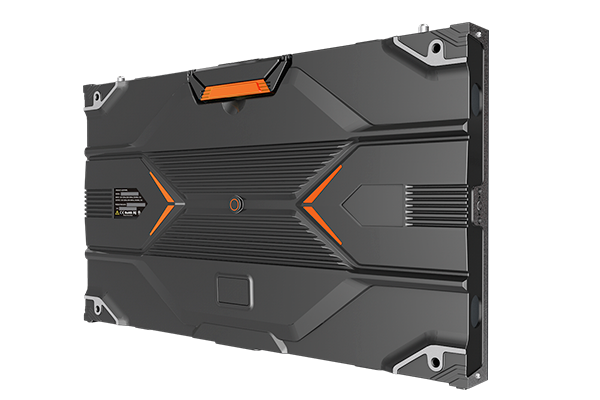

Die-cast Aluminum Cabinet
Adopting aluminum alloy die-casting technology and high-precision CNC processing, it is light in weight, has excellent heat dissipation performance, is corrosion-resistant, has a solid structure, and is easy to install and transport.
Cabinet Modularly Designed
Compatible with a variety of different pitches, can be quickly assembled into 2K/4K/8K screen sizes.

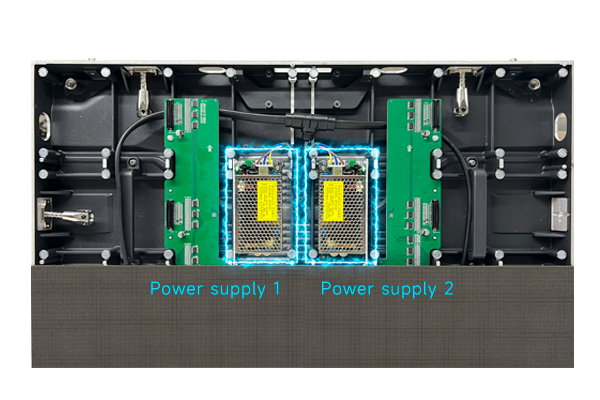

Power Supply Dual Backup
Available for cable connection or plug-in connection. Dual power supply, dual receiving card backup, more stable.

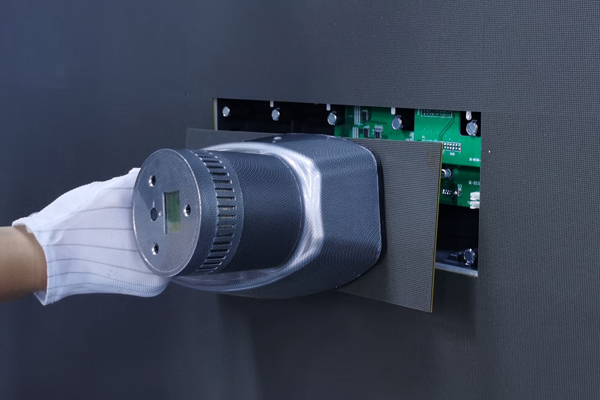

Front Maintenance
The cabinet, module, power supply, receiving card, and adapter board are all designed for front maintenance. You only need a magnetic suction tool to easily remove any module.
Applications
Widely used in auditoriums, conference rooms, banquets, lobby, exhibition demonstrations, transportation, studios, command monitoring and other fields.
Flagship store
Meeting room
Monitoring command center
Lobby
Technical Parameters
Contact us for detailed parameters.
| Model | XS1.267 | XS1.461 | XS1.58 | XS1.9 |
| Pixel Pitch | 1.267mm | 1.461mm | 1.58mm | 1.9mm |
| Module Size | 304*114mm | |||
| Module Resolution (dot) | 240*90 | 208*78 | 192*72 | 160*60 |
| Cabinet Size | 608mm*342mm | |||
| Cabinet Resolution (dot) | 480*270 | 416*234 | 384*216 | 320*180 |
| Maintenance Method | Front maintenance | |||
